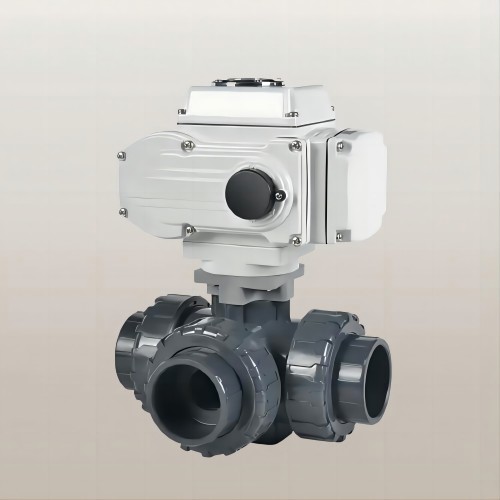

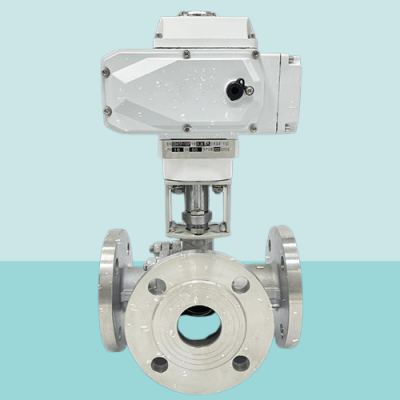

OEM High Temperature DN50-DN400 Three Ways Electric Ball Valve

Product ID : Electric Ball Valve 008

Product Attributes :

Descripition:

Application: General

Place of Origin: Hebei, China

Power: Electric

Structure: BALL

Customized support: OEM, OBM

Port Size：DN50-DN400

Warranty：1 years

Temperature of Media：High Temperature

Brand Name：Yuan Jida

Media: Water

Pressure：PN16, PN25

Power：Motorized

Rated travel time：15S/30S

rotation angle: 0-90 degree

Power voltage: AC100V AC220V AC380V DC24V DC12V AC24V

Port Size: 1"~12", DN25~DN400

Control Mode：On Off Type or Regulation Type

Certificate: CE certification

Product Description

Product Information:

Specification of Electric Actuator
Items Parameter	RTKD-05	RTKD-10	RTKD-16	RTKD-30	RTKD-60	RTKD-125	RTKD-250	RTKD-400
Output torque	50Nm	100Nm	160Nm	300Nm	600Nm	1250Nm	2500Nm	4000Nm
Rated travel time	10S/20S	15S/30S			30S/60S	100S	100S	100S
Rotation angle	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°
Working current	0.25A	0.48A	0.68A	0.8A	1.2A	2A	2A	2.7A
Starting power	0.25A	0.48A	0.72A	0.86A	1.38A	2.3A	2.3A	3A
Motor power	10W/F	25W/F	30W/F	40W/F	90W/F	100W/F	120W/F	140W/F
Weight	3kg	5kg	5.5kg	8kg	8.5kg	15kg	15.5kg	16kg
Power	AC220V, AC24V, AC110V , AC220 , AC380, DC24V (choose options)
Input signal	4-20mA (Modulating type)
Output signal	4-20mA (Modulating type)
Insulation resistance	100M/500VDC
Pressure withstanding	1500 VAC , one minutes
Inbreaking protection	IP65/IP67
Installation angle	360° any angle
Electrical Interperation	one G1/2 CNCO,one Power cord connection port,one signal wire connection port
Ambient humidity	-30°C to +60°C
Pilot circuit options	A:with limit position switch style (standard)
	B: with neutral position switch style ( passive contact)
	C:with potentiometer style
	D: both potentiometer and neutral position switch style
	E: with control module style ( Modulating Applications)
	F: DC motor control circuit style
	G:Three-phase current 380V control circuits style
	H:Three-phase current 380V, both neutral position switch and potentiometer style

Factory Information:

Yuan Jida Group, founded in 2013 in Baoding, Hebei Province, China.

Is a manufacturer and supplier of both electric actuator valve and pneumatic actuator valves,

including globe valves, ball valves, check valves, gate valves, and butterfly valves.

The materials of the valve include stainless steel, carbon steel, alloy, and duplex stainless materials.

The company's industrial valves are widely used in various applications,

including water treatment, chemical processing, pulp and paper, oil and gas, and power generation.

FAQ

1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price,

please email us or contact us in other ways so that we can offer you a quote.

2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.

3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.

5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.

6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
